2″ Round Recessed Economy 8W

Home / Regressed / 2″ Round Recessed Economy 8W

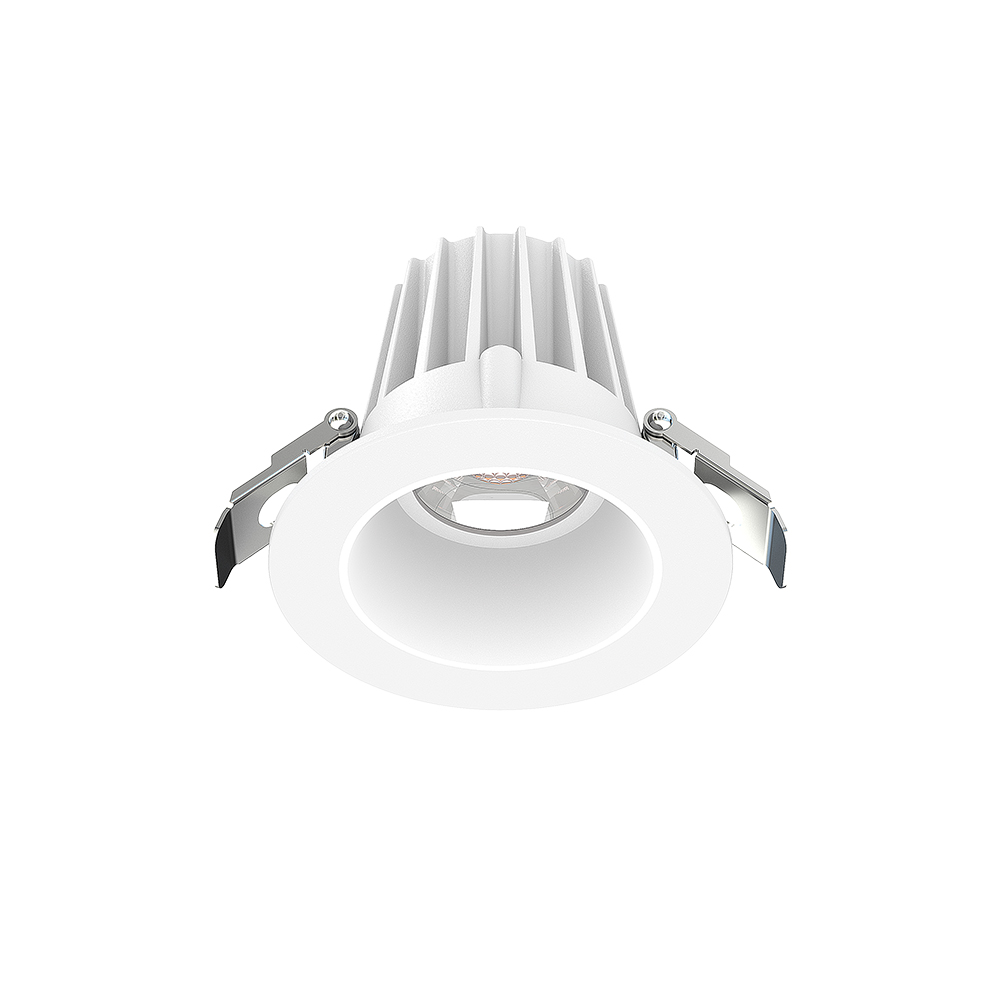

JXL-COB08-R08W-WH-2RR-SM-WH

User Selectable 3K-4K-5K with Smooth & Baffle, White & Black Reflectors.

MODEL: JXL-COB02-R08W-CCT Category: Regressed

Spec Sheet

  • Spec Sheet JXL-COB02-R08W-CCT

Product Features

  • Model: JXL-COB02-R08W-CCT
  • User Selectable 3K-4K-5K CCT
  • CRI 90+ for True Color Rendering
  • Type IC Rated – No Housing Required
  • 120V Triac Dimmable Driver Included
  • Fast and Easy To Install – Save On Labor
  • 2 3/4″ Deep – Install Where Ceiling Space Is Limited
  • Available with White & Black trims and Smooth & Baffle, White & Black Reflectors
  • Driver Inside Connection Box – No Junction Box Needed

Where to Buy


Video Overview

Technical Specifications

CONSTRUCTION:
2″ Round Recessed fixture with integral Driver in Connection Box.
One driver for every fixture required.

MOUNTING:
Cut hole in ceiling and snap fixture in opening with attached spring clips.
Ceiling Clearance Required for driver to fit through the hole: 5″

  • Driver Input Voltage: 120V AC 50/60 Hz
  • Dimmability – TRIAC Dimmers 20%-100%
  • Energy Used: 8W
  • Halogen equivalent: 50W
  • Beam Angle: 36°
  • User Selectable Light colour options: Soft White 3000K, Neutral White 4000K, Daylight White 5000K
  • Light output with White Reflectors – Smooth or Baffle: Soft White 620 lm, Neutral White 670 lm, Daylight White 650 lm
  • Light output with Black Reflectors – Smooth or Baffle: Soft White 520 lm, Neutral White 570 lm, Daylight White 550 lm
  • Ambient Operating Temperature: -4°F (-20°C) to +104°F (+40°C)
  • Approved Locations: Insulated Ceilings & Damp Locations
  • Rated: cETLus

DIMENSIONS:

  • ID 2 1/16″, OD 3 1/8″; Thickness 2 3/4″
  • Cut out: 2 1/2″ to 2 3/4″
  • Junction Box Dimensions (with driver inside): 5 1/2” x 1 3/4” x 1 1/8”

Accessories

Accessories – Sold Separately


Mounting Plate

13″ Long  Model #MP234

26″ Long – Model #RIP212


Jumper Cables

10 ft – Model #JC-5CCT-10


Goof Ring

4 1/2″ – Model #GR3
3 inch goof ring

Trim Color Options

Downloads

  • Spec Sheet Round JXL-COB02-R08W-CCT

Spectrophotometric PDF files

  • Round 3000K White Reflector
  • Round 4000K White Reflector
  • Round 5000K White Reflector
  • Round 3000K Black Reflector
  • Round 4000K Black Reflector
  • Round 5000K Black Reflector

Photometric PDF files

  • Round White Reflector
  • Round Black Reflector

Photometric IES files

  • Round White Reflector
  • Round Black Reflector
