4″ Multi Fit Floating Gimbal

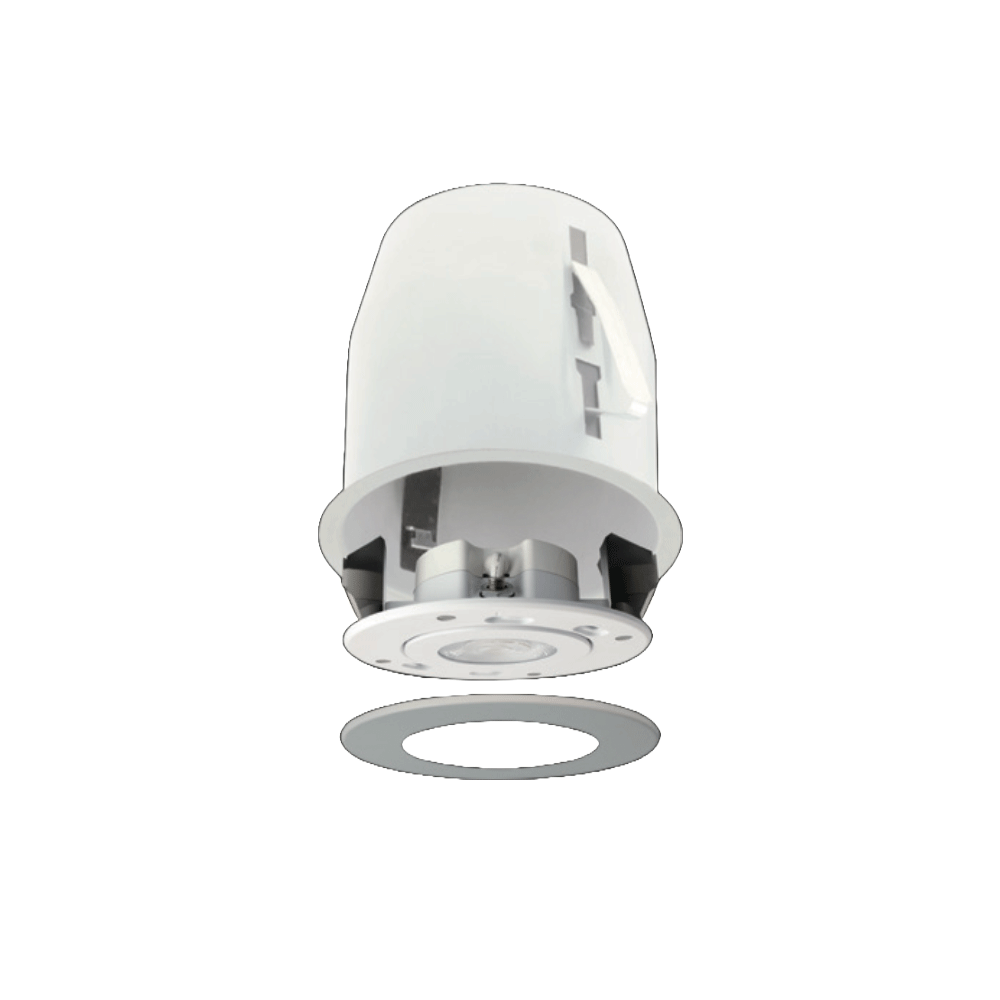

Install in J-Box or in recessed housing as retrofit.
Spec & Sell Sheets
- Spec Sheet Fixture: AD-LED-4-S9W-MFG
- Spec Sheet Retrofit Kit: RK-4M
Product Features
- Model AD-LED-4-S9W-MFG
- 4″ Multi LED – Fits in 4O – 1 1/2″ deep octagon box or Recessed Can
- Recessed Fixture Look Due to Very Thin Trim
- Adjustable in any direction and easy to use
- 5CCT user selectable with CRI 90+
- Magnetic Trims – White & Black in stock
- Wet Location Certified – Suitable for Showers and Outdoor
- Meets Fire Rating Code When Used in a Fire Rated J-Box
- Warranty: 5 Years
Technical Specifications
CONSTRUCTION:
Round 4″ Multi Fit J-Box or Retrofit Gimbal fixture.
MOUNTING:>
Installation Instructions
- Input Voltage: 120V AC
- Dimmability – TRIAC Dimmable 10% – 100%
- Power: 9W
- Halogen equivalent: 75W
- Beam Angle: default 38° | optional 24° & 60°
- Round Metal Magnetic Trims with Optional Colors
- Light colour options: 5CCT user selectable 2700K-3000K-3500K-4000K-5000K
- Light output: 675 lm to 830 lm
- CRI: 90+
- Ambient Operating Temperature: -4°F (-20°C) to +104°F (+40°C)
- Rated: cETLus
DIMENSIONS:
- ID 3 1/2″; OD 4 7/8″; Thickness 1 1/2″
Accessories
Trim Color Options
Downloads
Specification Sheet
- Fixture: AD-LED-4-S9W-MFG
- Retrofit Kit: RK-4M
Photometric PDF files:
Default 38° Beam:
PDF AD-LED-4-S9W-5CCT-WH-MFG-38D 2700K
PDF AD-LED-4-S9W-5CCT-WH-MFG-38D 3000K
PDF AD-LED-4-S9W-5CCT-WH-MFG-38D 3500K
PDF AD-LED-4-S9W-5CCT-WH-MFG-38D 4000K
PDF AD-LED-4-S9W-5CCT-WH-MFG-38D 5000K
Optional 24° Beam:
PDF AD-LED-4-S9W-5CCT-WH-MFG-24D 2700K
PDF AD-LED-4-S9W-5CCT-WH-MFG-24D 3000K
PDF AD-LED-4-S9W-5CCT-WH-MFG-24D 3500K
PDF AD-LED-4-S9W-5CCT-WH-MFG-24D 4000K
PDF AD-LED-4-S9W-5CCT-WH-MFG-24D 5000K
Optional 60° Beam:
PDF AD-LED-4-S9W-5CCT-WH-MFG-60D 2700K
PDF AD-LED-4-S9W-5CCT-WH-MFG-60D 3000K
PDF AD-LED-4-S9W-5CCT-WH-MFG-60D 3500K
PDF AD-LED-4-S9W-5CCT-WH-MFG-60D 4000K
PDF AD-LED-4-S9W-5CCT-WH-MFG-60D 5000K
Photometric IES files:
Default 38° Beam:
IES AD-LED-4-S9W-5CCT-WH-MFG-38D 2700K
IES AD-LED-4-S9W-5CCT-WH-MFG-38D 3000K
IES AD-LED-4-S9W-5CCT-WH-MFG-38D 3500K
IES AD-LED-4-S9W-5CCT-WH-MFG-38D 4000K
IES AD-LED-4-S9W-5CCT-WH-MFG-38D 5000K
Optional 24° Beam:
IES AD-LED-4-S9W-5CCT-WH-MFG-24D 2700K
IES AD-LED-4-S9W-5CCT-WH-MFG-24D 3000K
IES AD-LED-4-S9W-5CCT-WH-MFG-24D 3500K
IES AD-LED-4-S9W-5CCT-WH-MFG-24D 4000K
IES AD-LED-4-S9W-5CCT-WH-MFG-24D 5000K
Optional 60° Beam:
IES AD-LED-4-S9W-5CCT-WH-MFG-60D 2700K
IES AD-LED-4-S9W-5CCT-WH-MFG-60D 3000K
IES AD-LED-4-S9W-5CCT-WH-MFG-60D 3500K
IES AD-LED-4-S9W-5CCT-WH-MFG-60D 4000K
IES AD-LED-4-S9W-5CCT-WH-MFG-60D 5000K
