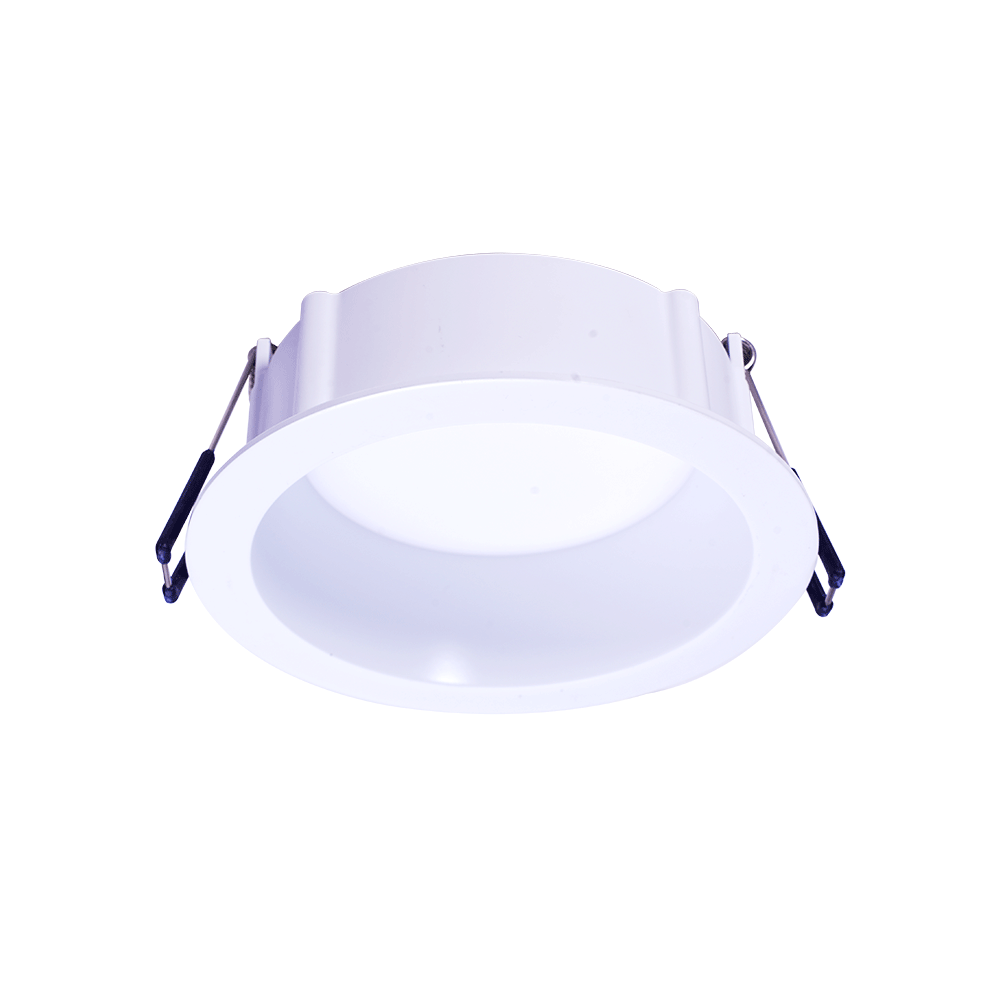

4″ Round Deep Regressed Eco LED 5CCT 11W
4″ Round Deep Regressed LED With Integral Driver In Connection Box
Spec Sheets
Product Features
- Power 11W
- 5CCT User Selectable 2700K | 3000K | 3500K | 4000K | 5000K
- White & Black trims in stock
- Superb Light Quality with CRI 90+
- Type IC Rated – Approved for Direct Contact with Insulation
- Air-Tight, Wet Location, Insulated and Non Insulated Ceilings
- Default driver: Triac Dimmable with Forward Phase LED Dimmers 120V input
- Optional driver: 0-10V Dimmable 120V-347V input
- Warranty 5 Year
- cULus Listed
Technical Specifications
CONSTRUCTION:
4″ Round Deep Regressed LED With Integral Driver In Connection Box. Builder Grade Fixture Providing Pleasant Low Glare Light
MOUNTING:
Cut out hole in ceiling (4 1/8″ to 4 1/4″) and snap fixture in opening with attached spring clips.
Space in ceiling needed for the driver to fit through the hole – 2″.
- Default driver: Triac Dimmable 120V input
- Optional driver: 0-10V Dimmable 120V-347V input
- Power factor: > 0.98
- Energy Used: 11W
- Halogen equivalent: 90W
- Beam Angle: 90°
- Light colour options: 5CCT User Selectable 2700 | 3000 | 3500 | 4000 | 5000 K
- Light output White Trim: 975 | 1000 | 1033 | 1030 | 977 lm
- Light output Black Trim: 708 | 718 | 736 | 732 | 709 lm
- CRI: 90+
- Ambient Operating Temperature: -40°F (-40°C) to +104°F (+40°C)
- Compliance: cULus Listed, certified to CSA STD. C22.2 No. 250.0
- Rated: Type IC (Direct Contact with Insulation), Air-Tight
DIMENSIONS:
- ID 4 1/8″; OD 4 13/16″; Thickness 2″
- Cut out: 4 1/8″ to 4 1/4″
- Junction Box Dimensions (with driver inside): 3 3/4″ x 3 3/8″ x 1 1/2″
Suitable for wet locations and soffit installations.
Accessories
Accessories – Sold Separately
Flanged Plate with Hanger Bars model # FRP4- 26″ Flat Rough-In Plates model # RIP4
- 13″ Mounting Plate Flanged model # MP4
- 13″ Mounting Plate Flat model # MP4-2
- Extension Cable 10 ft # EXC10-5CCT
Goof Ring Round OD 5 3/4″
- White – model #GR4
- Black – model # GR4-BK
Emergency Driver 8W 120-347V input
- Model # BLD-HM08D-YYY
Trim Color Options
Downloads
Specification Sheet
-
- Photometric PDF files:
White Trim:
PDF 2700K White Trim | PDF 3000K White Trim | PDF 3500K White Trim | PDF 4000K White Trim | PDF 5000K White Trim
Black Trim:
PDF 2700K Black Trim | PDF 3000K Black Trim | PDF 3500K Black Trim | PDF 4000K Black Trim | PDF 5000K Black Trim- Photometric IES files:
White Trim:
IES 2700K White Trim | IES 3000K White Trim | IES 3500K White Trim | IES 4000K White Trim | IES 5000K White Trim
Black Trim:
IES 2700K Black Trim | IES 3000K Black Trim | IES 3500K Black Trim | IES 4000K Black Trim | IES 5000K Black Trim- Spectrum Test Reports:
Spectrum Test White Trim
Spectrum Test Black Trim
