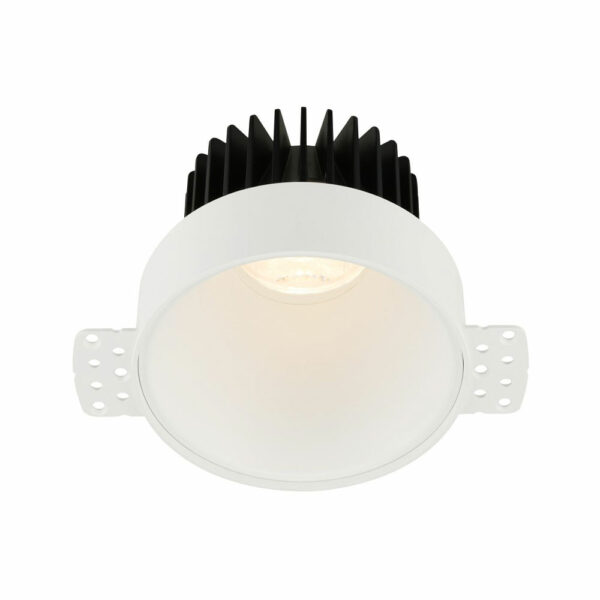

4″ Trimless Plenum Rated Deep Regressed LED 15W / 18W

Home / Regressed / 4″ Trimless Plenum Rated Deep Regressed LED 15W / 18W
LD4R-IT

MODEL: 15W LD4R-IT | 18W LD4R-HO-IT Category: Regressed

Spec Sheets

  • Spec Sheet Trimless 15W LD4R-IT
  • Spec Sheet Trimless 18W LD4R-HO-IT

Product Features

  • 15W LD4R-IT, 18W LD4R-HO-IT
  • Deep Regressed LED – Elegant Design Without Glare
  • Interchangeable Trims With High End Finishes
  • Armoured Cable & Metal Connectors – Open Plenum Rated
  • Type IC, Air-Tight & Wet Location – No Housing Required
  • 3 1/2″ thick – fits in limited ceiling space
  • Triac Dimmable with most CL dimmers 120V input
  • 0-10V Dimmable Option 120V – 347V input
  • Light Options: 2700K, 3000K, 3500K, 4000K, 5000K, 5CCT user selectable, Dim to Warm 3000-2000K or 3000-1800K
  • Light output 15W: 2700K-1100 lm, 3000K-1200 lm, 3500K-1250 lm, 4000K-1300 lm, 5000K-1400 lm, Dim To Warm 3000K to 2000K-900 lm, Dim To Warm 3000K to 1800K-980 lm
  • Light output 18W: 2700K-1500 lm, 3000K-1550 lm, 3500K-1600 lm, 4000K-1650 lm, 5000K-1700 lm, Dim To Warm 3000K to 2000K-1150 lm, Dim To Warm 3000K to 1800K-1250 lm
  • Driver Inside Connection Box with Romex Quick Connectors
  • Warranty: 10 Year Residential, 5 Year Commercial Installations
  • cULus certified and Energy Star (single CCT only) approved

Where to Buy


Video Overview

Discover Deep Regressed LED Lights

Technical Specifications

CONSTRUCTION:

4″ Round Trimless Deep Regressed LED – Elegant Design Without Glare. Driver Inside Connection Box with Romex Quick Connectors.
One driver for every fixture required.

MOUNTING:
Please watch the installation video.
Ceiling Clearance Required: 3 1/2″

  • Default Driver Input Voltage: 120V AC TRIAC Dimmable
  • Optional Driver Input Voltage: 120V-347V AC 0-10V Dimmable
  • Power factor:  0.98
  • Energy Used: 15W or 18W
  • Halogen equivalent: 110W / 150W
  • Beam Angle: 30°
  • Light output 15W model: Warm White 1100 lm, Soft White 1200 lm, Bright White 1250 lm, Neutral White 1300 lm, Daylight White 1400 lm, Dim to Warm 3000-2000K 900 lm, Dim to Warm 3000-1800K 980 lm
  • Light output 18W model: Warm White 1500 lm, Soft White 1550 lm, Bright White 1600 lm, Neutral White 1650 lm, Daylight White 1700 lm, Dim to Warm 3000-2000K1150 lm, Dim to Warm 3000-1800K 1250 lm
  • CRI: 90+
  • Ambient Operating Temperature: -40°F (-40°C) to +104°F (+40°C)
  • Compliance: cULus, Energy Star (single CCT only), T24

DIMENSIONS:

  • ID 4″; OD 4 7/8″; Thickness 3 1/2″
  • Cut out: 4″
  • Junction Box Dimensions (with driver inside): 3 3/4″ x 3 3/8″ x 1 1/2″

Suitable for insulated ceilings, open plenum, and wet locations.

Accessories

Accessories – Sold Separately


Optional 120-347V Input Driver

  • 0-10V Dimmable
  • For 15W models # LLL-LD1535TR
  • For 18W models # LLL-LD2050TR


Flat Rough-In Plate

  • For Regular Trims: model # RIP4
  • For Invisible Trims: model # RIP412


Flanged Rough – In Plate

  • For Regular Trims: model # FRP4
  • For Invisible Trims: model # FRP412


Low Voltage Extension Cable

  • model # MEC10

Trim Color Options

White model 4R-WR-IT
Silver model 4R-SR-IT

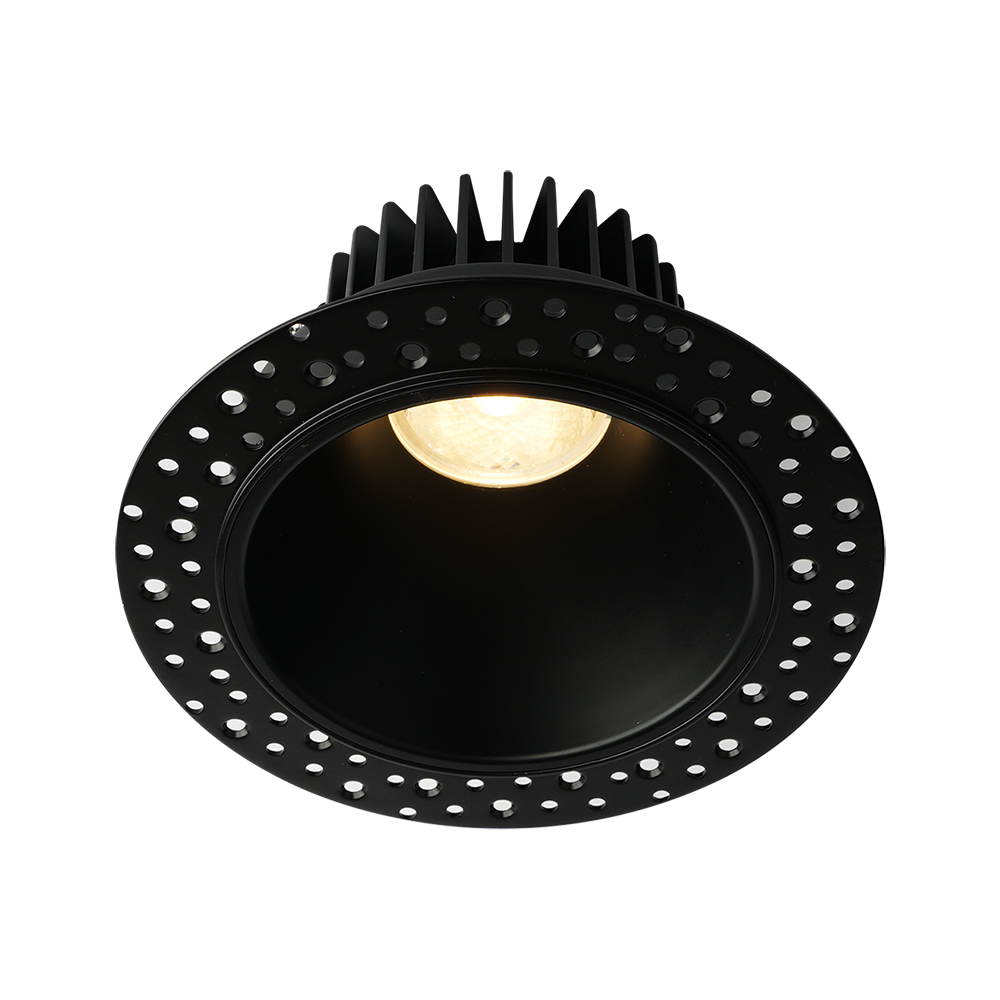

Black model 4R-BR-IT

Downloads

Specification Sheets

  • Spec Sheet Trimless 15W LD4R-IT
  • Spec Sheet Trimless 18W LD4R-HO-IT

Photometric PDF files 15W
Single CCT
PDF file LD4R-27K | PDF file LD4R-30K | PDF file LD4R-35K | PDF file LD4R-40K | PDF file LD4R-50K |PDF file LD4R-32K |PDF file LD4R-3018K
5 CCT
PDF file LD4R-5CCT-27K | PDF file LD4R-5CCT-30K | PDF file LD4R-5CCT-35K | PDF file LD4R-5CCT-40K | PDF file LD4R-5CCT-50K

Photometric PDF files 18W
Single CCT
PDF file LD4R-27K-HO | PDF file LD4R-30K-HO | PDF file LD4R-35K-HO | PDF file LD4R-40K-HO | PDF file LD4R-50K-HO |PDF file LD4R-32K-HO |PDF file LD4R-3018K-HO
5CCT
PDF file LD4R-HO-5CCT-27K | PDF file LD4R-HO-5CCT-30K | PDF file LD4R-HO-5CCT-35K | PDF file LD4R-HO-5CCT-40K | PDF file LD4R-HO-5CCT-50K

Photometric IES files 15W
Single CCT
IES file LD4R-27K | IES file LD4R-30K | IES file LD4R-35K | IES file LD4R-40K | IES file LD4R-50K |IES file LD4R-32K |IES file LD4R-3018K
5 CCT
IES file LD4R-5CCT-27K | IES file LD4R-5CCT-30K | IES file LD4R-5CCT-35K | IES file LD4R-5CCT-40K | IES file LD4R-5CCT-50K

Photometric IES files 18W
Single CCT
IES file LD4R-27K-HO | IES file LD4R-30K-HO | IES file LD4R-35K-HO | IES file LD4R-40K-HO | IES file LD4R-50K-HO |IES file LD4R-32K-HO |IES file LD4R-3018K-HO
5CCT
IES file LD4R-HO-5CCT-27K | IES file LD4R-HO-5CCT-30K | IES file LD4R-HO-5CCT-35K | IES file LD4R-HO-5CCT-40K | IES file LD4R-HO-5CCT-50K


Links to Energy Star:
LD4R-27K | LD4R-30K | LD4R-35K | LD4R-40K | LD4R-50K

LD4R-27K-HO | LD4R-30K-HO | LD4R-35K-HO | LD4R-40K-HO | LD4R-50K-HO
