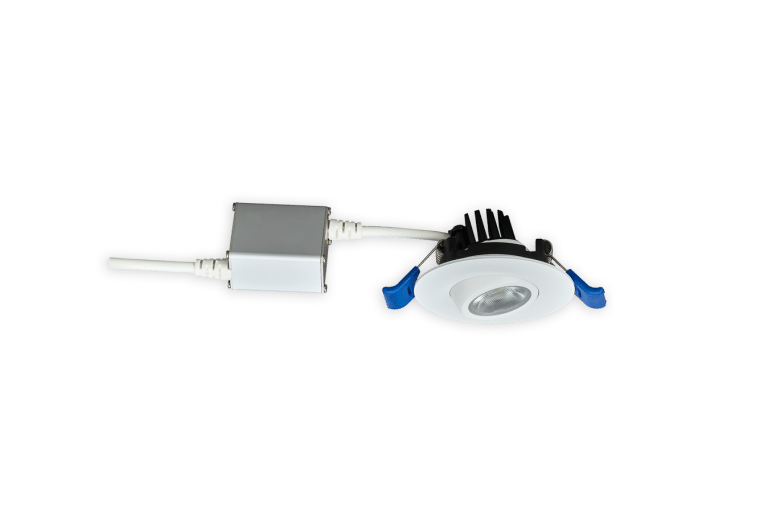

2″ Round Eyeball Gimbal 5W 24V – LL2G24V

Home / Low Voltage Recessed / 2″ Round Eyeball Gimbal 5W 24V – LL2G24V
LL2G24V

Gimbal Yet Air-Tight Without Housing Needed

MODEL: LL2G24V Category: Low Voltage Recessed

Spec Sheet

  • Spec Sheet LL2G24V

Product Features

  • 24V DC input
  • Not Dimmable
  • Light options: 2700K, 3000K & 4100K
  • Trims: White, Black & Brushed Nickel
  • Superb Light Quality with CRI 90+
  • Type IC Rated – Approved for Direct Contact with Insulation
  • Air-Tight, Wet Location, Insulated and Non-Insulated Ceilings
  • Recessed Housing is NOT Required even for Insulated Ceilings
  • Warranty: 10 Year on Residential, 5 Year on Commercial Installations
  • cULus Listed

Where to Buy



LL2G24V 360° View

Click & drag your cursor over the image to spin the image 360°.

Technical Specifications

CONSTRUCTION:
Round 2″ eyeball gimbal fixture with integral LED. DC module connected to every fixture to regulate the voltage and current and ensure long life.

MOUNTING:
Cut hole in ceiling and snap fixture in opening with attached spring clips.
Ceiling Clearance Required: 1 1/2″

  • Input Voltage: 20-28V DC
  • Energy Used: 5W
  • Halogen equivalent: 35W
  • Beam Angle: 24° Beam with 30° tilt and 360° rotation
  • Light colour options: Warm White 2700K, Soft White 3000K, Neutral White 4100K
  • Light output: Warm White 380 lm, Soft White 400 lm, Neutral White 430 lm
  • CRI: 90+
  • Ambient Operating Temperature: -40°F (-40°C) to +104°F (+40°C)
  • Compliance: cULus approved, certified to CSA STD. C22.2 No. 250.0
  • Rated: Type IC (Direct Contact with Insulation), Air-Tight

DIMENSIONS:

  • ID 2″, OD 2 1/2″; Thickness 1 1/2″
  • Cut out: 2″ to 2 1/8″

Suitable for wet locations and soffit installations.

Downloads

LED Recessed lighting Gimbal 2 inch

Specification Sheets
LL2G24V

pdf files
LL2G-27K | LL2G-30K | LL2G-41K

IES files
LL2G-27K | LL2G-30K | LL2G-41K
