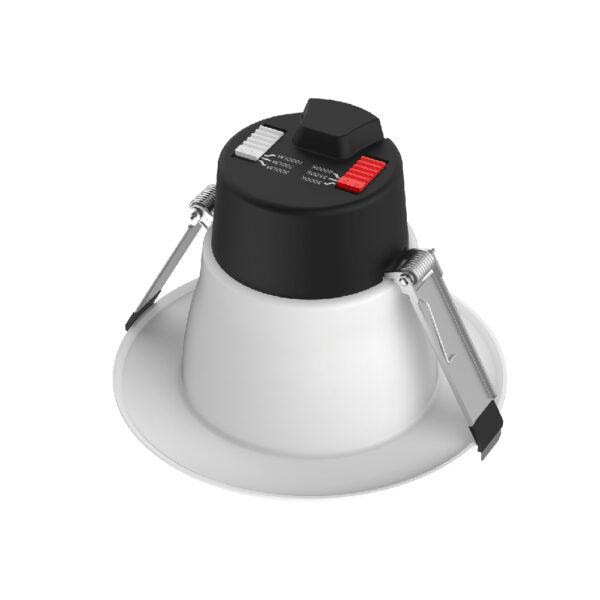

4″ Round Commercial 3 CCT & 3 Watt Selectable

Home / Commercial Recessed 0-10V / 4″ Round Commercial 3 CCT & 3 Watt Selectable
TP120-347-RT4-C-DIM-G1-ES

MODEL: TP120-347-RT4-C-DIM-G1-ES Category: Commercial Recessed 0-10V

Spec & Sell Sheets

  • Spec Sheet TP120-347-RT4-C-DIM-G1-ES
  • Sell Sheet Commercial Line

Product Features

  • All in one solution 4″ round recessed commercial grade LED fixture
  • Perfect for hospitality, shopping mall & retail, office, exterior soffit, etc.
  • User selectable 3 light colors & 3 power options
  • Color Temperatures: 3000K / 3500K / 4000K
  • Power Levels: 5.5W / 8W / 12W
  • Light Output: 500 lm / 700 lm / 1000 lm
  • Universal voltage 120V-347V input
  • 0-10V Dimmable 5%-100%
  • CRI 90+ for true color rendering
  • Type IC, Wet location & Air-tight
  • Regressed optics with low glare
  • Suitable for new construction and retrofit applications
  • cETLus, Energy Star, T24
  • Warranty: 5 Year

Where to Buy


Video Overview

Discover All-in-one Commercial Grade LED Lights

Technical Specifications

CONSTRUCTION:

All in one solution 4″ round recessed commercial grade LED fixture.
Perfect for hospitality, shopping mall & retail, office, exterior soffit, etc.

MOUNTING:
Cut Hole In Ceiling And Snap Fixture In Opening With Attached Spring Clips.
Ceiling Clearance Required: 4 1/4″

  • Input: 120V-347V AC 50/60 Hz
  • Power Levels (W): 5.5 | 8 | 12
  • Light Output (lm): 500 | 700 | 1000
  • Color Temperature (K): 3000K | 3500K | 4000K
  • Dimming: 0 – 10V
  • Beam Angle: 83°
  • CRI: 90+
  • Approved Location: Insulated Ceiling & Wet Locations
  • Ambient Temperature: -4°F (-20°C) to +104°F (+40°C)
  • Projected Life: 70% Light Output at 50,000 Hours
  • Compliance: cULus, Energy Star, T24
  • Warranty: 5 Year

DIMENSIONS:

  • ID 4″; OD 5 5/16″; Thickness 4 1/4″
  • Cut out: 4″ to 5 1/4″

Suitable for insulated ceilings, open plenum, and wet locations.

Accessories

Accessories Sold Separately


Black trim cover cat # LBL-4CRT-B


Silver trim cover cat # LBL-4CRT-S


Goof Ring White OD 8 1/2″ cat # LBL-4CGR-W


New Construction Mounting Plate for Stud Ceiling cat # LBL-MP-C4-8-STUD


New Construction Mounting Plate for T-bar Ceiling cat # LBL-MP-C4-10-TBAR

Downloads

Specification Sheets

  • TP120-347-RT4-C-DIM-G1-ES
  • Mounting Plate T-Bar Ceiling LBL-MP-C4-10-TBAR
  • Mounting Plate Stud Ceiling LBL-MP-C4-8-STUD

Sell Sheet

  • Sell Sheet Commercial Line 4″ to 10″

Installation Instructions

  • Installation Instructions Commercial Line 4″ to 10″ – English
  • Installation Instructions Commercial Line 4″ to 10″ – French

Photometric PDF files

  • PDF file 5.5W 3000K | PDF file 5.5W 3500K | PDF file 5.5W 4000K
  • PDF file 8W 3000K | PDF file 8W 3500K | PDF file 8W 4000K
  • PDF file 12W 3000K | PDF file 12W 3500K | PDF file 12W 4000K

Photometric IES files

  • IES file 5.5W 3000K | IES file 5.5W 3500K | IES file 5.5W 4000K
  • IES file 8W 3000K | IES file 8W 3500K | IES file 8W 4000K
  • IES file 12W 3000K | IES file 12W 3500K | IES file 12W 4000K

Link to Energy Star

  • TP120-347-RT4-C-DIM-G1-ES

width=
width=
width=
