5″ Sloped Square Regressed Gimbal

Home / Sloped Ceiling / 5″ Sloped Square Regressed Gimbal
LSG3-5SSL-WH
LSG3-5SSL-BK

30° Sloped Trim for Wall Washing and Sloped Ceilings from 5° to 55°

MODEL: 7.5W: LSG3-5SSL | 11W: LSG3-HO-5SSL Categories: Sloped Ceiling, New

Spec Sheet

  • Spec Sheet LSG3-5SSL
  • Spec Sheet LSG3-HO-5SSL

Product Features

  • Models: 7.5W LSG3-5SSL, 11W LSG3-HO-5SSL
  • 30° Sloped Trim & 20° Tilt – Ideal for Wall Washing & Sloped Ceilings with 5° to 55° Pitch
  • Type IC Rated – Approved for Direct Contact with Insulation
  • Air-Tight, Wet Location, Insulated and Non Insulated Ceilings
  • 7.5W model light options: 2700K, 3000K, 3500K, 4000K, 5000K, Dim To Warm 3000K to 2000K, and 5CCT
  • 11W model light options: 5CCT user selectable 2700-3000-3500-4000-5000K or Dim to Warm 3000K to 1800K
  • CRI 90+ for True Colour Rendering
  • Triac Dimmable with most CL dimmers 120V input
  • 0-10V Dimmable Option with 120V to 347V input
  • External Driver Inside Connection Box – No Junction Box Needed
  • Warranty: 10 Year on Residential, 5 Year on Commercial Installations
  • cULus Listed

Where to Buy



LSG3-5SSL 360° View

Click & drag your cursor over the image to spin the image 360°.

Video Overview

Sloped Regressed Gimbals

Technical Specifications

CONSTRUCTION:
5? Sloped Square Regressed Gimbal LED.
30° Sloped Trim for Wall Washing and Sloped Ceilings from 5° to 55°.
Class 2 Isolated external driver factory installed inside junction box. One driver for every fixture required.

MOUNTING:
Cut Hole In Ceiling And Snap Fixture In Opening With Attached Spring Clips.
Ceiling Clearance Required: 3?

  • Default Driver Triac Dimmable: 120V AC Input
  • Optional Driver 0-10V Dimmable: 120V-347V AC Input
  • Power factor: > 0.98
  • Energy Used: 7.5W / 11W
  • Halogen equivalent: 50W / 90W
  • Beam Angle: 38° Beam with 20° tilt and 360° rotation
  • Light colour options: Warm White 2700K, Soft White 3000K, Bright White 3500K, Neutral White 4000K, Daylight White 5000K, Dim to Warm 3000K to 2000K, 5CCT user selectable 2700K to 5000K
  • Light output 7.5W: 2700K 580 lm, 3000K 600 lm, 3500K 620 lm, 4000K 630 lm, 5000K 650 lm, Dim to Warm 500 lm
  • Light output 11W: 2700K 840 lm, 3000K 900 lm, 3500K 960 lm, 4000K 980 lm, 5000K 1000 lm, Dim to Warm 760 lm
  • CRI: 90 +
  • Ambient Operating Temperature: -40°F (-40°C) to +104°F (+40°C)
  • Compliance: cULus approved, certified to CSA STD. C22.2 No. 250.0
  • Rated: Type IC (Direct Contact with Insulation), Energy Star(7.5W only and except Dim to Warm and 5CCT), Air-Tight

DIMENSIONS:

  • ID 4 1/4?; OD 5 1/4? Square; Thickness 7.5W 3?, 11W 4?
  • Cut out: 4 1/2? to 5?
  • Junction Box Dimensions (with driver inside): 3 3/4? x 3 3/8? x 1 1/2?

Suitable for wet locations and soffit installations.

Installation

ALL FIXTURES MUST BE INSTALLED IN ACCORDANCE WITH CURRENT APPLICABLE ELECTRICAL CODES.

Regressed Gimbal LED Lights Installation:

CONNECTING THE DRIVER:
Open the cover of the junction box. Push and remove the knockout on the side plate. Install standard L16 cable connector. Insert line voltage feed into the cable connector and splice same colour wires using the included quick connectors. Close the cover. Connect the driver to the light fixture – the arrows on the male and female parts of the connector between the driver and the fixture should match. Tighten the connector by hand.

OPTIONS FOR LOCATING DRIVER:

Fixture comes connected to the driver by 15? long low voltage cable with waterproof connector in the middle.
Depending on where you want the driver to be you have 2 options:

  1. Locate next to the fixture.
  2. Or install all drivers at one location and use low voltage extension cables to the fixtures. Use only extensions provided by the manufacturer. Available jumper cables are 6 feet (1.8m) and 20 feet (6m). Cables are linkable.
    Maximum run should not exceed 40 feet (12m).

DIMMING:

We recommend LED/CFL dimmers that have a low range adjustment dial. After all fixtures are connected to the dimmer adjust the dial to the lowest position before the lights start to flicker of shut down. This setting depends on the local voltage and number of fixtures per dimmer.

LIST OF COMPATIBLE DIMMERS

WARNING:
DO NOT USE ANY OTHER DRIVERS EXCEPT THE LOTUS DRIVERS THAT ARE INCLUDED WITH THE FIXTURE.
DO NOT CONNECT MULTIPLE FIXTURES TO ONE DRIVER.
DO NOT OPEN THE LIGHT FIXTURE AND THE SIDE PLATES OF THE DRIVER – NO SERVICEABLE PARTS INSIDE.

Trim Color Options

Available in White and Black Trim

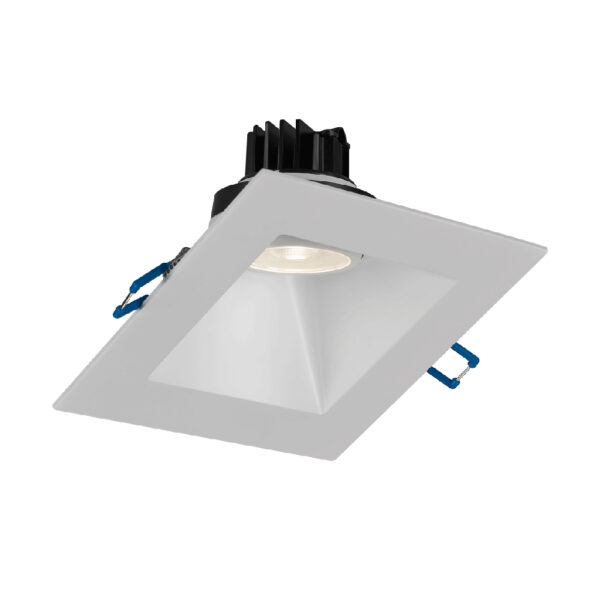

LSG3-5SSL

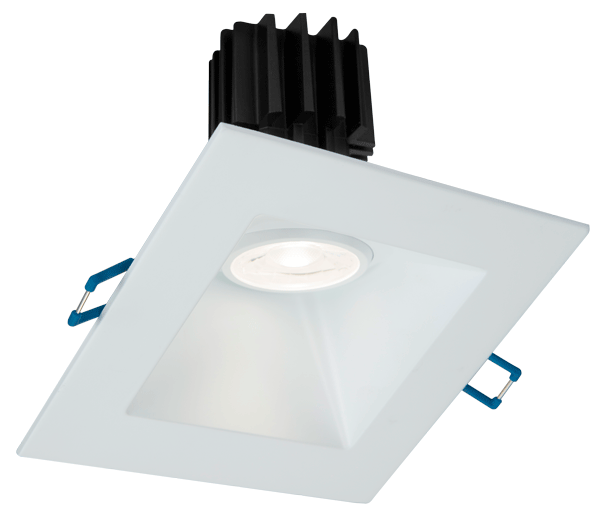

LSG3-HO-5SSL

Downloads

Specification Sheets
Spec Sheet LSG3-5SSL
Spec Sheet LSG3-HO-5SSL

Spec Sheet optional 0-10V driver LLL-LD1025T3

Extension cables : EXC-6 | EXC-20

Rough in plates : RIP5 | FRP412

Photometric PDF files
LSG3-27K | LSG3-30K | LSG3-35K | LSG3-40K | LSG3-50K | LSG3-32K

5CCT : LSG3-5CCT-27K | LSG3-5CCT-30K | LSG3-5CCT-35K | LSG3-5CCT-40K | LSG3-5CCT-50K

pdf file LSG3-HO-5CCT-5SSL at 2700K | pdf file LSG3-HO-5CCT-5SSL at 3000K | pdf file LSG3-HO-5CCT-5SSL at 3500K | pdf file LSG3-HO-5CCT-5SSL at 4000K | pdf file LSG3-HO-5CCT-5SSL at 5000K | pdf file LSG3-HO-3018K-5SSL at 100%

Photometric IES files
LSG3-27K | LSG3-30K | LSG3-35K| LSG3-41K | LSG3-50K | LSG3-32K

5CCT : LSG3-5CCT-27K | LSG3-5CCT-30K | LSG3-5CCT-35K | LSG3-5CCT-40K | LSG3-5CCT-50K

IES file LSG3-HO-5CCT-5SSL at 2700K | IES file LSG3-HO-5CCT-5SSL at 3000K | IES file LSG3-HO-5CCT-5SSL at 3500K | IES file LSG3-HO-5CCT-5SSL at 4000K | IES file LSG3-HO-5CCT-5SSL at 5000K | IES file LSG3-HO-3018K-5SSL at 100%

Links to Energy Star 7.5W LSG3:

LSG3-27K | LSG3-30K | LSG3-35K | LSG3-41K | LSG3-50K
