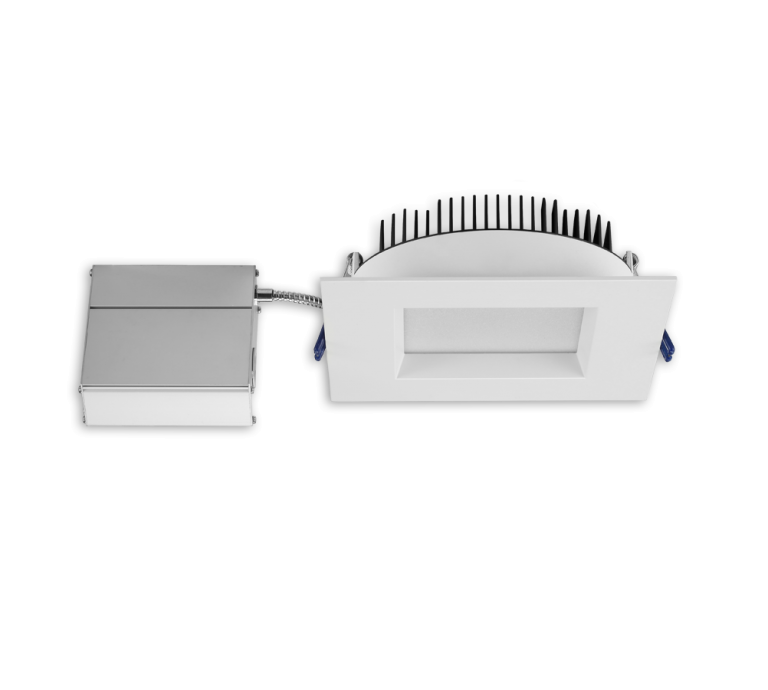

6″ Square Plenum Rated 17W

Home / Regressed / 6″ Square Plenum Rated 17W
LL6SR-WH
LL6SR-BK

Commercial Grade Quality With Architectural Design. Open Plenum Rated.

MODEL: LL6SR Category: Regressed

Spec Sheet

  • Spec Sheet LL6SR

Product Features

  • Power 18W
  • Open Plenum Rated
  • Type IC Rated – Approved for Direct Contact with Insulation
  • Air-Tight, Wet Location, Insulated and Non Insulated Ceilings
  • Light colors: 2700K, 3000K, 4000K & 5CCT user selectable
  • Superb Light Quality with CRI 90+
  • Triac Dimmable with most CL dimmers 120V input
  • 0-10V Dimmable Option 120V – 347V input
  • External Driver Inside Connection Box – No Junction Box Needed
  • Warranty: 10 Year on Residential, 5 Year on Commercial Installations
  • cULus Listed,  Energy Star and T24 Certified

Where to Buy


LL6SR 360° View

Click & drag your cursor over the image to spin the image 360°.

Video Overview

Discover 2nd Generation Regressed LED Lighting Fixtures

Technical Specifications

CONSTRUCTION:
6″ Square Regressed LED fixtures with integral LEDs and built-in driver.
Open Plenum Rated Commercial Grade Quality With Architectural Design.

MOUNTING:
Cut Hole In Ceiling And Snap Fixture In Opening With Attached Spring Clips.
2 1/4″ Above Ceiling Clearance Required. Quick connectors Included.

  • Default Input Voltage: 120V AC Triac Dimmable
  • Optional Driver Input Voltage: 120V-347V AC 0-10V Dimmable
  • Power factor: > 0.99
  • Energy Used: 17W
  • Halogen equivalent: 100W
  • Beam Angle: 95°
  • Light colour options: 2700K, 3000K, 4000K & 5CCT user selectable
  • Light CCT: 2700 | 3000 | 3500 | 4000 | 5000 K
  • Light output: 1030 | 1110 | 1140 | 1190 | 1170 lm
  • CRI > 90
  • Ambient Operating Temperature: -40°F (-40°C) to +104°F (+40°C)
  • Compliance: cULus Listed
  • Rated: Type IC (Direct Contact with Insulation), Energy Star (except 5CCT), Air-Tight, T24

DIMENSIONS:

  • OD 7″ (178 mm); ID 6″ (152 mm); Thickness 2 1/4″ (56 mm)
  • Cut out: 6″ to 6 1/4″

Suitable for Wet Locations, Insulated Ceilings & Open Plenum installations.

Installation

ALL FIXTURES MUST BE INSTALLED IN ACCORDANCE WITH CURRENT APPLICABLE ELECTRICAL CODES.

Regressed LED Lights Installation:

CONNECTING THE FIXTURE:
Open the cover of the junction box. Push and remove one of the half-inch knockouts. Install standard L16 cable connector. Use double connector for daisy chaining fixtures. Insert line voltage feed into the cable connector and splice same colour wires using the included quick connectors. Close the cover.

DIMMING:

We recommend LED/CFL dimmers that have a low range adjustment dial. After all fixtures are connected to the dimmer adjust the dial to the lowest position before the lights start to flicker of shut down. This setting depends on the local voltage and number of fixtures per dimmer.

LIST OF COMPATIBLE DIMMERS

WARNING:
DO NOT OPEN THE LIGHT FIXTURE – NO SERVICEABLE PARTS INSIDE.

Trim Color Options

Available in White and Black Trims

trim colours

Downloads

Specification Sheet
Spec Sheet LLSRR

pdf files single CCT
pdf file LL6SR-27K | pdf file LL6SR-30K | pdf file LL6SR-40K

pdf files 5 CCT version
pdf file 5CCT at 2700K | pdf file 5CCT at 3000K | pdf file 5CCT at 3500K | pdf file 5CCT at 4000K | pdf file 5CCT at 5000K

IES files single CCT
IES file LL6SR-27K | IES file LL6SR-30K | IES file LL6SR-40K

IES files 5 CCT version
IES file 5CCT at 2700K | IES file 5CCT at 3000K | IES file 5CCT at 3500K | IES file 5CCT at 4000K | IES file 5CCT at 5000K


Links to Energy Star:
LL6SR-27K | LL6SR-30K | LL6SR-40K
