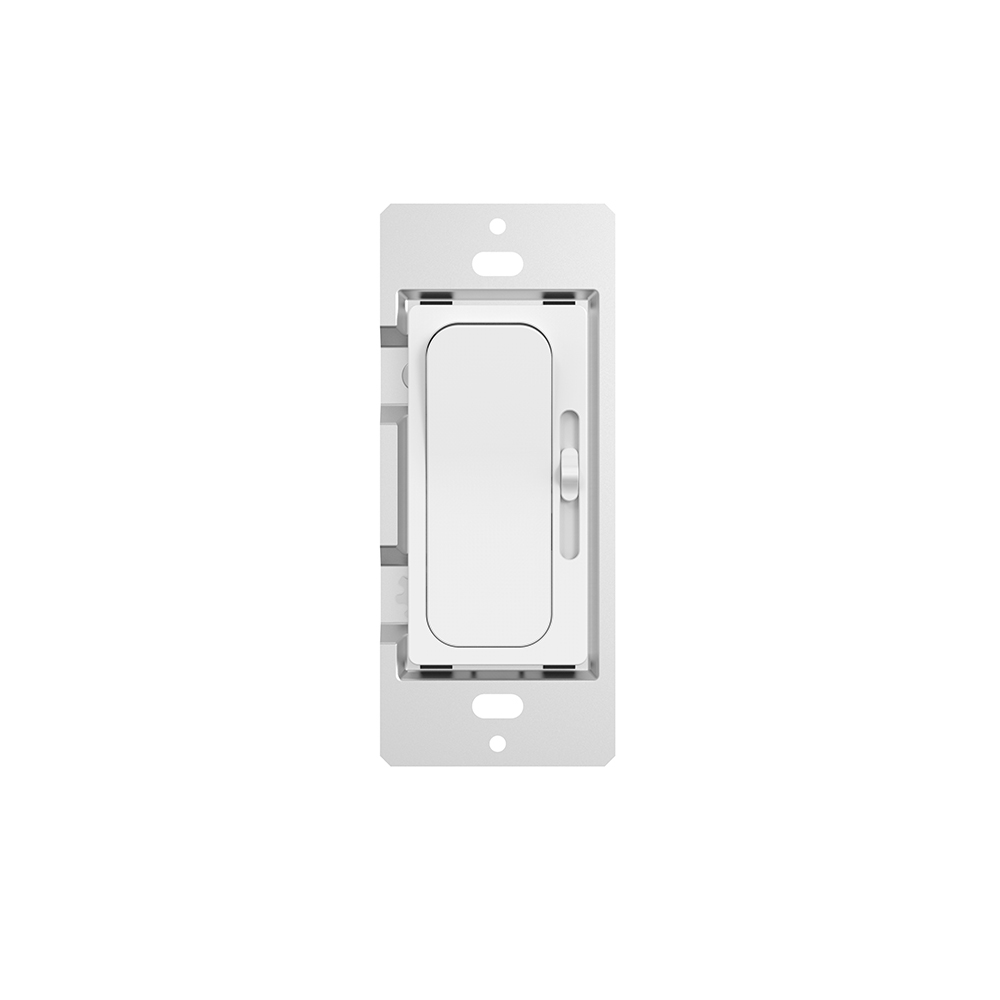

Slide Dimmer Triac
Smart Wi-Fi dimmer for controlling LED, CFL and incandescent light fixtures.
Spec & Sell Sheet
Installation Instructions
Product Features
- Slide Dimmer Triac Forward Phase
- Maximum LED load 200W
- Rocker Switch & Lever Slider for easy operation
- Adjustment Dial for setting the minimum brightness
- No Neutral wire needed
- Single Pole or 3-Way Wiring
- Fits in multi gang boxes without need to break tabs
- Certification: c ETL us
- Warranty: 3 Year
Technical Specifications
- Input: 100 V AC 60 Hz
- Approved Location: Indoor / dry locations
- Minimum / Maximum Load LED / CFL: 3W / 200 W
- Minimum / Maximum Load Incandescent : 15W / 600 W
- Single Pole or 3-Way
- No Neutral Wire Needed
- Dimming Mode: Forward Phase Cut (Leading Edge)
- Operating Temperature: 0°C to + 40°C (32°F to 104°F)
- Operating Humidity: 10% – 90% RH
- Certifications: c ETL us, FCC
- Warranty: 3 Year
Downloads
Spec & Sell Sheet
Installation Instructions
