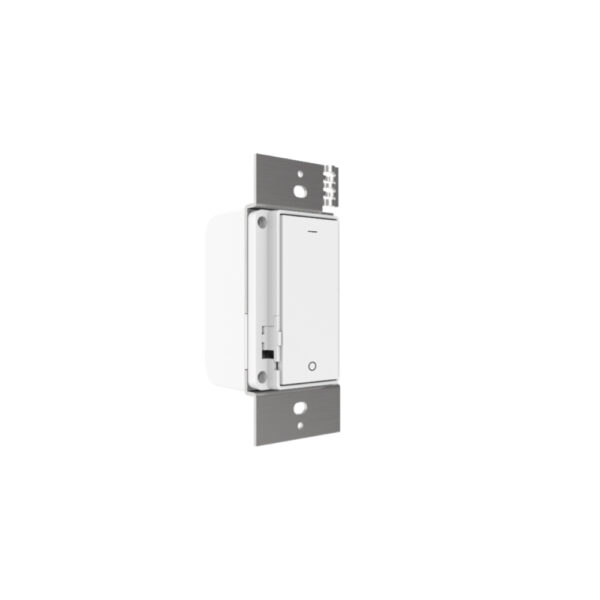

Smart Dimmer

Home / Drivers, Controls, & Devices / Smart Dimmer
ERC111

Smart Wi-Fi dimmer for controlling LED, CFL and incandescent light fixtures.

MODEL: ERC111 Category: Drivers, Controls, & Devices

Spec & Sell Sheets

  • Spec Sheet ERC111
  • Smart Controls Datasheet

Product Features

  • No hub needed
  • Installs like regular single pole dimmer, neutral wire required
  • Can be paired with up to 10 remote kinetic switches

Controlled By

  • push button
  • kinetic self-powered remote switch cat # EU1254
  • phone app “Kinetic Switch”, WiFi 2.4 GHz needed
  • voice control with most smart speakers

Where to Buy


Video Overview

Discover Smart LED Devices

Technical Specifications

  • Input: 100 – 240 V AC 50/60 Hz
  • Approved Location: Indoor / dry locations
  • Maximum Load LED / CFL: 200 W
  • Maximum Load Incandescent : 250 W
  • Wireless Communication: WiFi 2.4GHz or RF 902 MHz
  • Kinetic Remote Distance: 100 ft (30m) indoor / 160 ft (50m) outdoor
  • Pairing Capacity: maximum of 10 kinetic switches paired
  • Operating Temperature: -15°C to + 45°C (5°F to 113°F)
  • Available in White only
  • Certifications: c ETL us, FCC
  • Warranty: 3 Year

Downloads

Spec Sheet ERC111

Smart Controls Datasheet

Kinetic WiFi app instructions
