4″ Round Multi Fit 8W – LED-S8W

Home / Surface / J-Box Mount / 4″ Round Multi Fit 8W – LED-S8W
LED-S8W-MT
LED-S8W-MT-trims-options

Install in J-Box or in recessed housing as retrofit.

MODEL: LED-S8W-MT Category: Surface / J-Box Mount

Spec & Sell Sheets

  • Spec Sheet Fixture: LED-S8W-MT
  • Spec Sheet Retrofit Kit: RK-4M

Product Features

  • Model LED-S8W-MT
  • 4″ Multi LED – Fits in J-Box or Can
  • Recessed Fixture Look Due to Very Thin Trim
  • Air-Tight & Wet Location – Suitable for Showers and Outdoor
  • Options of 3000K, 4000K or 5CCT 27-30-35-40-50K
  • CRI 90+ for True Color Rendering
  • Meets Fire Rating Code When Used in a Fire Rated J-Box
  • Warranty: 5 Years
  • Magnetic Trims with Optional Colors

Where to Buy


Video Overview

Multi Fit LED Lights

Technical Specifications

CONSTRUCTION:
Round 4″ Multi Fit J-Box or Retrofit fixture.

MOUNTING:
Installation Instructions

  • Input Voltage: 120V AC
  • Dimmability – TRIAC Dimmable 10% – 100%
  • Energy Used: 8W
  • Halogen equivalent: 50W
  • Beam Angle: 110°
  • Light colour options: 3000K, 4000K or 5CCT 2700K-3000K-3500K-4000K-5000K
  • Light output: 515 lm to 560 lm
  • CRI: 90+
  • Ambient Operating Temperature: -4°F (-20°C) to +104°F (+40°C)
  • Rated: cETLus, Energy Star, T24

DIMENSIONS:

  • ID 3 1/2″; OD 4 7/8″; Thickness 1 1/8″

Accessories

Retrofit Kit with E26 Adapter & Butterfly Clips

    • cat # RK-4M


Specification Sheet

  • RK-4M

Trim Color Options

Available in Stock:

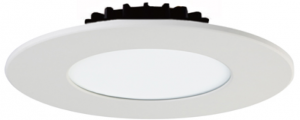

White Trim Included

Black – BK | Brushed Nickel – BN

All fixtures come packaged with a White trim

*Other Colors Available by Custom Order

Downloads

Specification Sheet

  • Fixture: LED-S8W-MT
  • Retrofit Kit: RK-4M

Sales Sheet:

  • model: LED-S8W Sales Sheet

Installation Instructions:

  • model: LED-S8W-MT Installation Sheet

Photometric PDF files:

PDF LED-S8W-5CCT-MT-2700K

PDF LED-S8W-5CCT-MT-3000K

PDF LED-S8W-5CCT-MT-3500K

PDF LED-S8W-5CCT-MT-4000K

PDF LED-S8W-5CCT-MT-5000K

Photometric IES files:

IES LED-S8W-5CCT-MT-2700K

IES LED-S8W-5CCT-MT-3000K

IES LED-S8W-5CCT-MT-3500K

IES LED-S8W-5CCT-MT-4000K

IES LED-S8W-5CCT-MT-5000K


Link to Energy Star LED-S8W-MT
