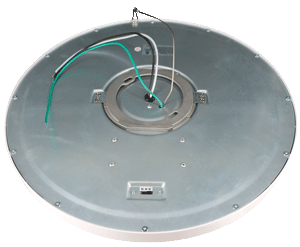

15″ Surface Mount Edgelit Disk 30W 3CCT

Home / Surface / J-Box Mount / 15″ Surface Mount Edgelit Disk 30W 3CCT
ADS15R-3CCT

MODEL: ADS15R-3CCT Category: Surface / J-Box Mount

Spec Sheet

  • Spec Sheet ADS15R-3CCT

Product Features

  • 15″ Multi-Purpose Surface Mounted Energy-Efficient Fixture
  • Low Profile With Narrow Flange For Architectural Appearance
  • Fast & Easy to Install in J-Box – Save on Labor
  • Triac Dimmable Down to 10%
  • Flicker Free AC Design
  • Wet Location Approved – Suitable For Indoor & Outdoor Installations
  • CRI 90+ for True Color Rendering
  • Choose between 3CCT – 3000K, 4000K or 5000K
  • Warranty: 5 Year

Where to Buy


Video Overview

Discover 15″ Surface Mount Edgelit Disk

Technical Specifications

CONSTRUCTION:
Round 15″ Multi-Purpose Surface Mount Fixture

MOUNTING:
Installation Instructions

  • Driver Input Voltage: 120V AC
  • Dimmability – TRIAC Dimmable 10% – 100%
  • Energy Used: 30W
  • Halogen equivalent: 200W
  • Beam Angle: 110°
  • Light color: 3CCT User Selectable – 3000K, 4000K or 5000K
  • Light output (LM): 1940 | 2090 | 1960
  • CRI: 90+
  • Trim color:  White, other colors available by custom order
  • Ambient Operating Temperature: -4°F (-20°C) to +104°F (+40°C)
  • Warranty: 5 Years
  • Rated: cETLus, Energy Star, T24

DIMENSIONS:

  • OD 15″ Thickness 1″

Downloads

Specification Sheets
Spec Sheet ADS15R-3CCT

Installation Instructions
Installation Instructions ADS15R-3CCT

Photometric PDF files

  • 3000K | 4000K | 5000K

Photometric IES files

  • 3000K | 4000K | 5000K
