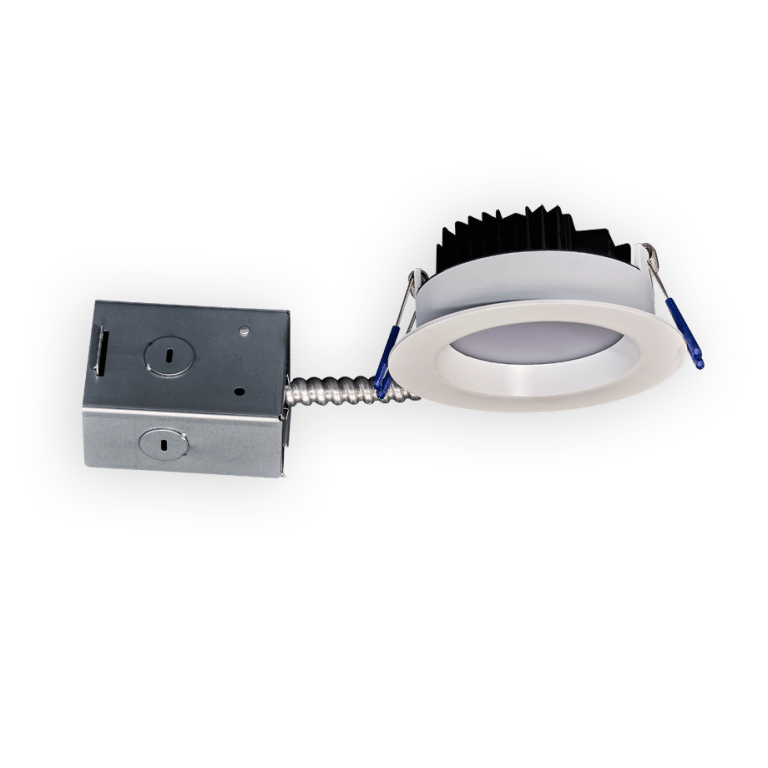

4″ Round Plenum 1st Gen 14.5W – LL4RRG

Home / First Generation / 4″ Round Plenum 1st Gen 14.5W – LL4RRG
LL4RRG

Commercial Grade Quality With Architectural Design. Open Plenum Rated.

MODEL: LL4RRG Category: First Generation

Spec Sheet

  • LL4RRG

Product Features

  • Model LL4RRG
  • Open Plenum Rated
  • Type IC Rated – Approved for Direct Contact with Insulation
  • Air-Tight, Wet Location, Insulated and Non-Insulated Ceilings
  • Superb Light Quality with CRI 90+
  • Triac Dimmable with most CL dimmers 120V input
  • Warranty: 10 Year on Residential, 5 Year on Commercial Installations
  • Built-in Driver and pre-mounted Connection Box – No Junction Box Needed
  • cULus Listed and Energy Star certified

Where to Buy



LL4RRG 360° View

Click & drag your cursor over the image to spin the image 360°.

Video Overview

Regressed LED Fixtures Overview

Discover 4 inch Round Regressed LED fixture

Technical Specifications

CONSTRUCTION:
Round 4″ Regressed LED fixtures with integral LEDs and built-in driver.
Commercial Grade Quality With Architectural Design.

MOUNTING:
Cut Hole In Ceiling And Snap Fixture In Opening With Attached Spring Clips.
2″ Above Ceiling Clearance Required. Quick connectors Included.

  • Input Voltage: 120V AC
  • Power factor: > 0.99
  • Energy Used: 14.5W
  • Halogen equivalent: 75W
  • Beam Angle: 92°
  • Light colour options: Warm White 2700K, Soft White 3000K and Neutral White 4100K
  • Light output: Warm White 850 lm, Soft White 860 lm, and Neutral White 900 lm
  • CRI: 92 for the 2700K, 90 for the 3000K and 93 for the 4100K
  • Ambient Operating Temperature: -40°F (-40°C) to +104°F (+40°C)
  • Compliance: cULus Listed
  • Rated: Type IC (Direct Contact with Insulation), Air-Tight, Wet Location

DIMENSIONS:

  • OD 5″ (125 mm); ID 4″ (100 mm); Thickness 2″ (51 mm)
  • Cut out: 4″ to 4 1/4″

Suitable for Insulated Ceilings & Open Plenum locations.

  • Warm White 2700K is yellowish, similar to halogen and incandescent light. Creates soft, calming feeling. We recommend the Warm White for bedrooms.
  • Soft White 3000K is a bit whiter and brighter than 2700K and the preferred choice of most of the customers. We recommend the Soft White for living rooms and kitchens with warm coloured countertops and cabinets.
  • Neutral White 4100K is whiter, colder and more energizing light. Using this colour will make the room look white, modern and brighter. We recommend the Neutral White for offices and work areas, garages, kitchens with white or dark countertops and cabinets.

Installation

ALL FIXTURES MUST BE INSTALLED IN ACCORDANCE WITH CURRENT APPLICABLE ELECTRICAL CODES.

Recessed LED Lights Installation:

CONNECTING THE FIXTURE:
Open the cover of the junction box. Push and remove one of the half-inch knockouts on the side plate. Install standard L16 cable connector. Use double connector for daisy chaining multiple drivers. Insert line voltage feed into the cable connector and splice same colour wires using wire nuts. Close the cover.

DIMMING:

We recommend LED/CFL dimmers that have a low range adjustment dial. After all fixtures are connected to the dimmer adjust the dial to the lowest position before the lights start to flicker of shut down. This setting depends on the local voltage and number of fixtures per dimmer.

LIST OF COMPATIBLE DIMMERS

WARNING:
DO NOT OPEN THE LIGHT FIXTURE – NO SERVICEABLE PARTS INSIDE.

Trim Color Options

Available in White and Black Trim

Downloads

4 inch regressed LED lights

Specification Sheets
LL4RRG

pdf files
LL4RRG-27K | LL4RRG-30K | LL4RRG-41K

IES files
LL4RRG-27K | LL4RRG-30K | LL4RRG-41K

Links to Energy Star: LL4RRG-27K ; LL4RRG-30K ; LL4RRG-41K
