Mini Puck LED Lights 1W – AD-108

Home / Pucks, Bars, Tape & Step Lights / Mini Puck LED Lights 1W – AD-108
5P-AD-108
AD-108

MODEL: AD-108 Category: Pucks, Bars, Tape & Step Lights

Spec & Sell Sheets

  • Spec Sheet: AD-108
  • Spec Sheet Dimmable Hard Wired Driver: HBL024-120-12-D
  • Spec Sheet Not Dimmable Plug-In Driver: WLS-PD30LU-24

Product Features

  • 1″ Mini Puck LED 12V DC
  • 70 lm with CRI 90+
  • 5 pack single units or 6 pack with plug-in driver
  • Ultra-compact, versatile, easily connected via daisy chained low voltage cable to an either remote mounted class 2 power supply or solar inverter
  • Approved for Damp Locations
  • Warranty: 3 Year

Where to Buy


Video Overview

Discover 1″ Mini Puck LED Light

Technical Specifications

MOUNTING:
Recessed only, great for under cabinet lighting, niche lighting,
RV & trailers, off-grid solar.
Installation Instructions Mini Pucks

  • Energy Used: 1W
  • Halogen Equivalent: 5W
  • Input: 12V DC
  • Dimmability: Dimmable with compatible 12V power supplies
  • Beam Angle: 100°
  • Light color options:  Soft White 3000K
  • Light output: 70 lm
  • CRI 90 + for True Colour Rendering
  • Ambient Operating Temperature: -4°F (-20°C) to +104°F (+40°C)
  • Certification: cETLus

DIMENSIONS:

  • ID 1″ ; OD 1 15/16″ ; Depth 5/8″


Sold in 2 packages:

5 pack pucks only no connectors 3K white cat# 5P-AD-108-3K

6 pack with connectors, 6 port hub and non-dimmable plug-in driver 3K white cat# 6P-AD-108-3K-D-H

Accessories

Hard Wired Triac Dimmable Driver

  • 24W
  • cat # HBL024-120-12-D

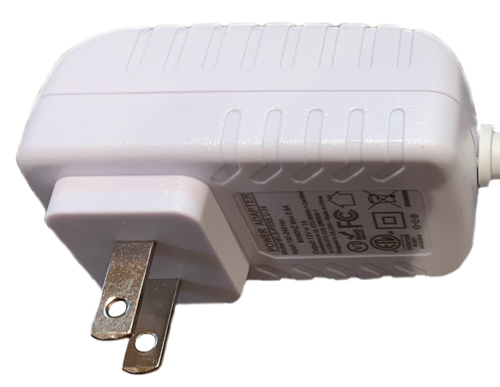

Plug-In Not Dimmable Driver

  • 12W
  • cat # WLS-PD30LU-24

6-Port Hub

  • cat # AD-107THB1

Downloads

Specification Sheet

  • AD-108
  • Spec Sheet Dimmable Hard Wired Driver: HBL024-120-12-D
  • Spec Sheet Not Dimmable Plug-In Driver: WLS-PD30LU-24

Installation Instructions

  • Installation Instructions Mini Pucks

Photometric PDF file

  • AD-108-30K

Photometric IES file

  • AD-108-30K

Related Products

  • AD-107T

    Ultra Slim LED Puck Light 2.2W – AD-107

    AD-107T
  • UCL1001

    Under Cabinet Bars 3CCT 8″ to 32″ – UCL1001

    UCL1001
  • LBL-2216

    LED Tape 1.5W/FT to 4.5W/FT IP20

    LBL-2216-126P-24V-10
  • LBL-COB-384-24V-8MM

    COB LED Strip Light IP20

    LBL-COB-384-24V-8MM || LBL-COB-320-24V-8MM-100FT
  • IP65

    COB LED Strip Light IP65

    LBL-COB-384-24V-10MM-IP65
  • LSD-WH

    Step Light LED Vertical / Horizontal Mount

    LSD
  • LSD03-WH

    Step Light LED Horizontal with Motion Sensor

    LSD03
  • LSD04-WH

    Step Light Vertical with Motion Sensor

    LSD04
  • Screw Connectors for LED Strip Lights

    SC-8-10-TT-1 | SC-8-10-TT-9 | SC-8-10-TW
