Ultra Slim LED Puck Light 2.2W – AD-107
Spec & Sell Sheets
- Spec Sheet Single Puck: AD-107T
- Spec Sheet 3 Pack Pucks: 3P-AD-107T
- Spec Sheet 12V Dimmable Hard Wired Driver: HBL024-120-12-D
- Spec Sheet 24V Dimmable Hard Wired Driver: HBL024-120-24-D
- Spec Sheet Not Dimmable Plug-In Driver: WLS-PD30LU-24
Product Features
- 12V and 24V DC Input Options
- Slim to size and bright in lumen output
- With a width of 1/4″, the puck light can be recessed or surface mounted

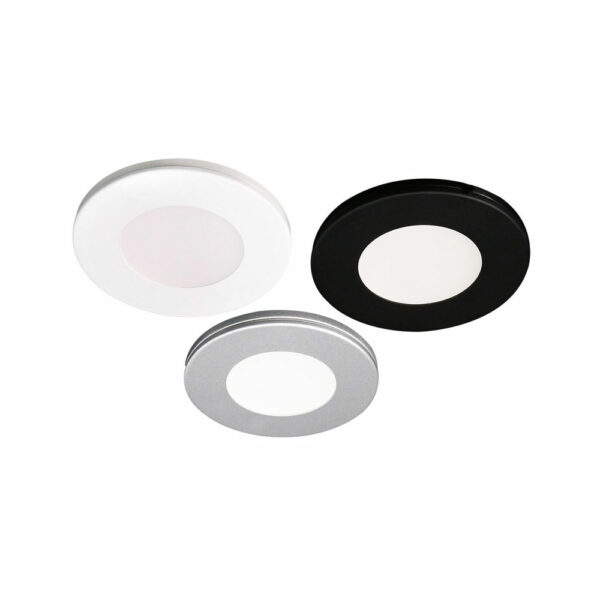

- Easily swap the trim color with the magnetic technology engineered into the pucks
- Connect the puck lights to the power supply using a 6-port hub and wires already integrated
- Can be purchased in single packs or in a pack of three that includes a transformer (12V option only)
- Each puck includes a Mounting Bracket & 3 Trims (White, Black and Brushed Nickel)
- 3 Pack Includes: 3 Puck with 3 trims, cables, and 6 Port Hub Plug in Driver 120V AC 12W Non-Dimmable
- Warranty: 3 Year
Video Overview
Under Cabinet Puck LED Lights
Technical Specifications
MOUNTING:
1/4″ Thin Surface Mounted or 1/8″ Thin Recessed Mounted.
Installation Instructions
- Energy Used: 2.2W
- Halogen Equivalent: 15W
- Input: 12V DC or 24V DC
- Plug-In Driver: Not Dimmable
- Hard Wired Driver: TRIAC Dimmable 10% – 100%
- Beam Angle: 120°
- Light colour options: Soft White 3000K, Neutral White 4000K
- Light output: Soft White 150 lm, Neutral White 170 lm
- CRI 90 + for True Colour Rendering
- Ambient Operating Temperature: -4°F (-20°C) to +104°F (+40°C)
- Certification: cETLus
DIMENSIONS:
- ID 2 1/4″ ; OD 3″ ; Depth: 1/4″ Thin Surface Mounted or 1/8″ Thin Recessed Mounted
1 Puck Packaging Includes:
Puck Light with plug-in wires|3 Trims: White, Black, & Brushed Nickel | Mounting Bracket
3 Pack Option Includes (available for the 12V input only):
3 Puck Lights with plug-in wires | 6 Port Hub | Plug in Driver 120VAC 12W Not Dimmable | 9 Trims: White, Black & Brushed Nickel
Accessories
Hard Wired Triac Dimmable Driver
- 24W
- 12V model # HBL024-120-12-D
- 24V model # HBL024-120-24-D
Plug-In Not Dimmable Driver
- 12W
- 12V model # WLS-PD30LU-24
6-Port Hub
- cat # AD-107THB1
Downloads
Specification Sheets
- Single Puck: AD-107T
- 3 Pack Pucks: 3P-AD-107T
- 12V Dimmable Hard Wired Driver: HBL024-120-12-D
- 24V Dimmable Hard Wired Driver: HBL024-120-24-D
- 12V Not Dimmable Plug-In Driver: WLS-PD30LU-24
Sales Sheet
Installation Instructions
PDF Photometric file 30K model
IES Photometric file 30K model
