7″ Edgelit Disk 15W – ADS7R9

Home / Surface / J-Box Mount / 7″ Edgelit Disk 15W – ADS7R9
ADS7R9

MODEL: ADS7R9 Category: Surface / J-Box Mount

Spec Sheet

  • Spec Sheet ADS7R9

Product Features

  • 7″ Multi-Purpose Surface Mounted Energy-Efficient Fixture
  • Lower Profile With Narrow Flange For Elegant Appearance
  • Fast & Easy to Install in J-Box – Save on Labor
  • Triac Dimmable Down to 10% Flicker Free
  • Wet Location Approved – Suitable For Indoor & Outdoor (soffit) Installations
  • 3000K, 4000K and 5CCT user selectable options
  • CRI 90+ for True Color Rendering
  • Emergency Battery Backup Sold Separately
  • Warranty: 5 Year

Where to Buy


Video Overview

Technical Specifications

CONSTRUCTION:
Round 7″ Multi-Purpose Surface Mount Fixture

MOUNTING:
Installation Instructions

  • Input Voltage: Single CCT 120V, 5CCT option 120-277V AC
  • Dimmability – TRIAC Dimmable 10% – 100%
  • Energy Used: 15W
  • Halogen equivalent: 120W
  • Beam Angle: 100°
  • Light color: 3000K, 4000K and 5CCT 2700K to 5000K
  • Light output: 1150 to 1300 lm lm
  • CRI: 90+
  • Trim color:  White, other colors available by custom order
  • Ambient Operating Temperature: -4°F (-20°C) to +104°F (+40°C)
  • Warranty: 5 Years
  • Rated: cETLus, Energy Star, T24

DIMENSIONS:

  • OD 7 7/8″; Thickness 5/8″

Accessories

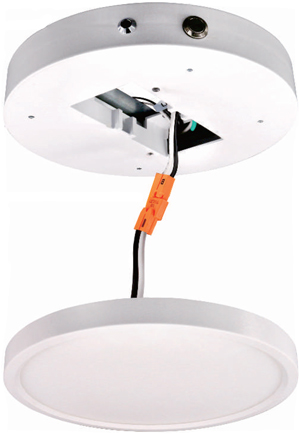

Emergency Battery Backup

    • 90 minute guaranteed
    • real life operating with new battery: 3 hours at around 50% brightness
    • cat # EMB-SF001
    • Spec Sheet: EMB-SF001

Empty Surface Mount Backbox

  • Spec Sheet: EMBS

Downloads

Specification Sheet

  • Spec Sheet ADS7R9

Sales Sheet

  • Sales Sheet ADS7R9

Installation Instructions

  • ADS7R9 Installation Instructions

PDF Photometric files

Photometric PDF files:
PDF 2700K | PDF 3000K | PDF 3500K | PDF 4000K | PDF 5000K

Photometric IES files:
IES 2700K | IES 3000K | IES 3500K | IES 4000K | IES 5000K

  • pdf file Brightness after 30 minutes discharge of ADS7R9
  • IES file Brightness after 30 minutes discharge of ADS7R9
  • pdf file Brightness after 90 minutes discharge of ADS7R9
  • IES file Brightness after 90 minutes discharge of ADS7R9
