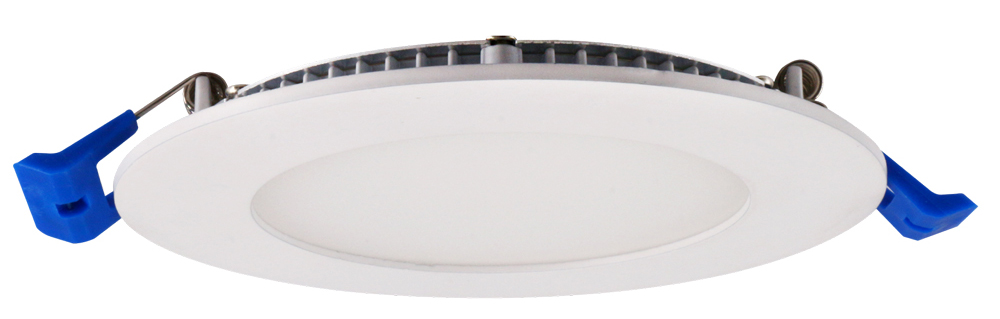

4″ Round Super Thin Budget 9W LED-S9W

Home / Super Thin Recessed / 4″ Round Super Thin Budget 9W LED-S9W
LED-S9W

MODEL: LED-S9W Category: Super Thin Recessed

Spec & Sell Sheets

  • Spec Sheet: LED-S9W
  • Sell Sheet: LED-S9W

Product Features

  • 1/2″ Deep – Install Directly Under Ceiling Joists
  • Single Color 3000 | 4000K or 5 CCT User Selectable: 2700K | 3000K | 3500K | 4000K | 5000K
  • Type IC Rated – No Housing Required
  • Driver Inside Connection Box – No Junction Box Needed
  • Triac Dimmable with most CL dimmers 120V input
  • Warranty: 3 Year

Where to Buy


Video Overview

Discover 4″ & 6″ Ultra Slim Round Recessed LED Lights

Technical Specifications

CONSTRUCTION:
Round 4″ Ultra Slim Recessed fixtures with integral Driver in Connection Box. Single color or 5 CCT.
One driver for every fixture required.

MOUNTING:
Cut Hole In Ceiling And Snap Fixture In Opening With Attached Spring Clips.
Ceiling Clearance Required for driver to fit: 2 1/2″

  • Energy Used: 9W
  • Halogen equivalent: 60W
  • Beam Angle: 120°
  • Light colour options:  Soft White 3000K | Neutral White 4000K | 5CCT : 2700K | 3000K |3500K | 4000K | 5000K
  • Light output: 3000K 600 lm, 4000K 620 lm, 5CCT : 620 | 650 | 690 | 680 | 660
  • CRI: 80
  • Driver Input Voltage: 120V AC
  • Dimmability – TRIAC Dimmable 10% – 100%
  • Ambient Operating Temperature: -4°F (-20°C) to +104°F (+40°C)
  • Warranty: 3 Years
  • Compliance: cETLus, Energy Star

DIMENSIONS:

  • ID 4″; OD 4 7/8″; Thickness 1″
  • Cut out: 4″
  • Junction Box Dimensions (with driver inside): 3 3/8″ x 3 3/8″ x 1 1/8″

Suitable for Insulated Ceilings & Damp Locations.

Accessories

Sold Separately

  • FRP4Flanged Plate with Hanger Bars model # FRP4
  • RIP41226″ Flat Rough-In Plates model # RIP412
  • mp413″ Mounting Plate Flanged model # MP4
  • MP4-213″ Mounting Plate Flat model # MP4-2
  • JC-5CCT-10Jumper Cable 10 ft. 5 CCT Model # JC-5CCT-10
  • JC-10Jumper Cable 10 ft. for Single CCT Models # JC-10
  • gr4Goof Ring OD 5 3/4″ model # GR4

Trim Color Options

Available in 3000K | 4000K | 5CCT

5 CCT:

Downloads

Specification Sheet

  • LED-S9W

Sales Sheet

  • LED-S9W
  • LED-S9W Sales Sheet

Installation Instructions

  • LED-S9W Installation

Photometric pdf files
pdf LED-S9W single 3000K

Photometric PDF files 5CCT version:
PDF at 2700K | PDF at 3000K | PDF at 3500K | PDF at 4000K | PDF at 5000K

IES files
ies LED-S9W single 3000K

IES files 5CCT version:
IES at 2700K | IES at 3000K | IES at 3500K | IES at 4000K | IES at 5000K


Link to Energy Star: LED-S9W
